Configuration Overview
The Haier 43A9UG utilizes a direct-LED panel running 4K UHD resolution (3840 x 2160) at a native 60 Hz refresh rate with a 1200:1 contrast ratio and 178-degree viewing angles. Powered by a Google TV operating environment backed by 2 GB system RAM and 32 GB flash storage, hardware connectivity includes 3 HDMI ports, 2 USB 2.0 inputs, optical audio out, dual-band Wi-Fi, and Bluetooth 5.0.
Key Features
- Display Engine: 16:9 LED-backlit panel with native HDR10 decoding, MEMC frame interpolation, and an 8 ms response time.
- System Hardware: Equipped with 2 GB RAM and 32 GB onboard storage for application caching and stable multitasking.
- Acoustic Engineering: 2.0-channel stereo array producing 20W RMS output with integrated Auto Volume Leveller and Dolby Digital decoding.

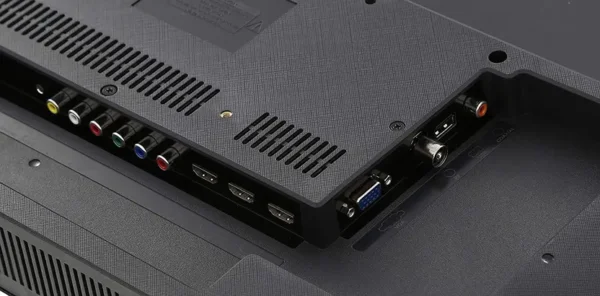

- Physical Port Array: Includes 3x HDMI inputs, 2x USB 2.0 media ports, an Ethernet RJ45 socket, and a digital optical audio output.
- Wireless Standards: Dual-band Wi-Fi and Bluetooth wireless connectivity for smart peripherals, audio gear, and voice remotes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | Haier 43A9UG |
| Display Resolution | 3840 x 2160 (4K Ultra HD) |
| Refresh Rate & Response Time | 60 Hz / 8 ms |
| Contrast Ratio & Brightness | 1200:1 / 300 Nits |
| Processor & Memory | 2 GB RAM / 32 GB ROM |
| Operating System | Google TV |
| Audio RMS & Processing | 20W (2x 10W Speakers) / Dolby Audio |
| Power Consumption | 100W Running / 0.5W Standby |
